Filtros absolutos membrana plegada estériles

Filtros absolutos membrana plegada estériles

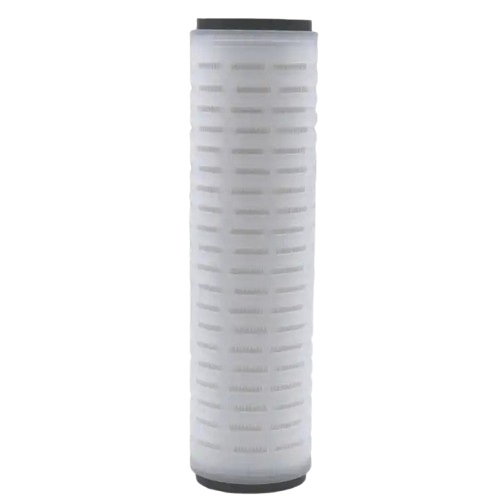

FILTRO ABSOLUTOS CON MEMBRANA PLEGADA AUTOCLAVABLES PARA USO FARMACEUTICO

Length	<span “=””>5、10、 20、 30、 40 inch
End Cap	DOE, 2-222 Flat, 2-222 Fin, 2-226 Flat, 2-226 Fin and other special sizes
O-ring	EPDM、Viton、Silicone、 Teflon/Viton
Application	Simiconductor, Optoelectroics, Chemicals Manufacturing, Beverage, Wine, Pharmaceutics, Ultra Pure Water, Medical Water and PCW etc.

Material	Polyropylene		Material	PTFE
Micron Rating	0.1, 0.2, 0.5, 0.8, 1, 2, 3, 4, 5, 10, 20, 30, 40, 70 μm		Micron Rating	0.1, 0.2, 0.45, 0.65 μm
Max Differential Pressure	90℃ → 1.4kg/cm² 20℃ → 4.8kg/cm²		Max Differential Pressure	90℃ → 1.4kg/cm² 20℃ → 4.1kg/cm²

Material	Polyethersulfone		Material	PVDF
Micron Rating	0.03, 0.05, 0.1, 0.2, 0.45, 0.65 μm		Micron Rating	0.1, 0.2, 0.45, 0.65, 1, 10 μm
Max Differential Pressure	90℃ → 1.2kg/cm² 20℃ → 3.4kg/cm²		Max Differential Pressure	90℃ → 1.4kg/cm² 20℃ → 4.1kg/cm²

Material	Nylon		Material	All PVDF
Micron Rating	0.05, 0.1, 0.2, 0.45, 0.65μm		Micron Rating	0.1, 0.2, 0.45, 0.65, 1, 10 μm
Max Differential Pressure	90℃ → 1.4kg/cm² 20℃ → 3.4kg/cm²		Max Differential Pressure	90℃ → 2.2kg/cm² 20℃ → 5.8kg/cm²
