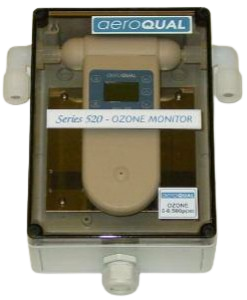

Series 520
The Series 520 is supplied in an FRP enclosure, is functionality rich and has the added feature of onboard and PC data logging.
Monitor Specifications
| Series 520 Monitor Base | |
|---|---|
| Measurement units | ppm or mg/m 3 |
| Removable / replaceable sensor head |
Yes |
| On-board alarm | Yes |
| Alarm status displayed | Yes |
| Low battery indication | Yes |
| Alarm mute function | Yes |
| Sensor condition status | Yes |
| Stand-by mode | Yes |
| External signal for alarms & control | Transistor output, 150 mA max |
| External signal functions | Low Alarm, High Alarm & Control |
| Analogue output | 0 – 5 V |
| Power supply | 12 VDC, 800 mA |
| Rechargeable battery pack (optional) | 9.6V Ni-MH (5 hours operation) |
| Portable (with optional battery pack) |
Yes |
| Permanently fixable | Screw fix |
| Remote Sensor Capability | Yes |
| Enclosure rating | IP20 & NEMA 1 equivalent |
| Size (with sensor head) | 195 x 122 x 54 (mm); 7? x 4¾ x 2? (in) |
| Weight (with sensor head and battery) |
< 460 g; < 16 oz |
| Approvals | Part 15 of FCC Rules EN 50082-1: 1997 EN50081-1: 1992 |
| Data interface with PC | Serial RS232 |
| On Board Data Logging | 8,000 data points |
| Data logging independent of PC |
Yes |
| Data logging direct to PC | Yes |
| On-board real-time clock | Yes |
| Data logging software supplied | Yes
|
